Intel 12th/13th/14th Gen ready | PCIe 4.0 x16 slot | Up to 64 GB DDR4 | Micro-ATX form factor | 3-year warranty

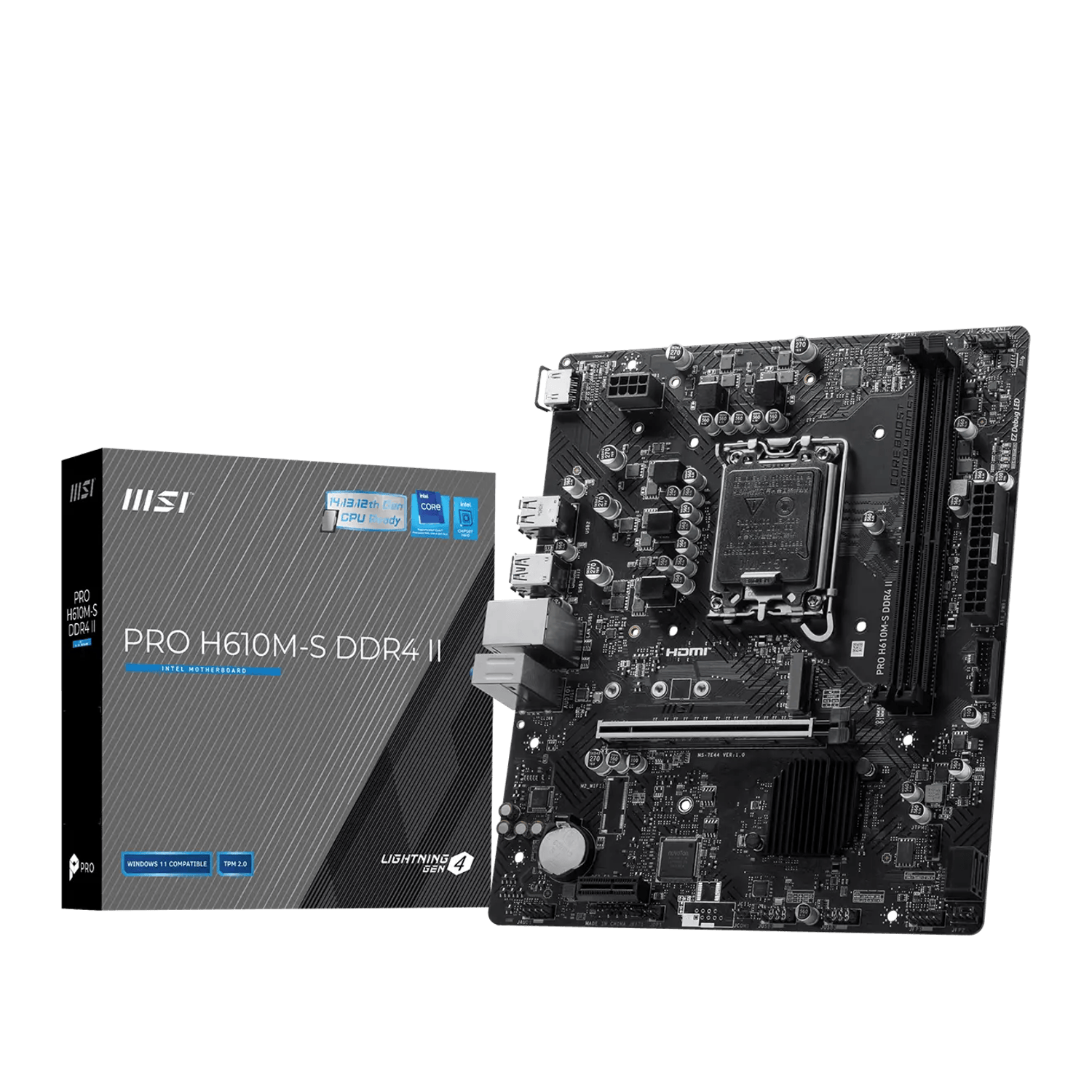

The MSI PRO H610M-S DDR4 II is a Micro-ATX motherboard built for professionals and system builders who need a reliable, no-fuss foundation for an Intel-based productivity PC. Designed around the Intel H610 chipset and LGA1700 socket, it supports Intel Core 12th, 13th, and 14th Gen processors as well as Pentium Gold and Celeron giving you flexibility whether you’re building new or upgrading. Two DDR4 memory slots accommodate up to 64 GB of dual-channel RAM, while a PCIe 4.0 x16 slot delivers the bandwidth needed for a capable discrete GPU. An M.2 slot (PCIe 3.0 x4) keeps fast NVMe storage tidy and off the SATA lanes, alongside four SATA 6 Gb/s ports for additional drives. Rear connectivity includes HDMI 1.4 (up to 4K 30 Hz on processors with integrated graphics), a VGA output, Gigabit LAN, and a mix of USB 2.0 and USB 3.2 Gen 1 5 Gbps Type-A ports. MSI’s Core Boost power design, EZ Debug LEDs for straightforward troubleshooting, and the MSI Center software suite round out a board engineered to keep your workday running smoothly.
Features
- Supports Intel Core 14th, 13th, and 12th Gen processors on the LGA1700 socket, plus Intel Pentium Gold and Celeron
- PCIe 4.0 x16 slot (from CPU) for high-bandwidth discrete graphics cards, with Steel Armor reinforcement
- Two DDR4 memory slots supporting up to 64 GB in dual-channel configuration
- 1x M.2 slot (PCIe 3.0 x4) for NVMe SSDs in 2242, 2260, and 2280 form factors
- 4x SATA 6 Gb/s ports for additional storage devices
- Rear display outputs: HDMI 1.4 (4K 30 Hz) and VGA available on CPUs with integrated graphics
- Realtek ALC897 7.1-channel High Definition Audio codec
- Realtek RTL8111H Gigabit LAN controller with MSI AI LAN Manager for traffic prioritisation
- 4x EZ Debug LEDs for quick fault diagnosis during POST
- MSI Core Boost technology for stable, optimised power delivery to the CPU
- TPM 2.0 header included; Windows 11 64-bit compatible
Specifications
- Socket: LGA1700
- Chipset: Intel H610
- Form Factor: Micro-ATX
- Memory Type: DDR4
- Memory Slots: 2
- Max Memory: 64GB
- M.2 Slots: 1
- PCIe Version: PCIe 4.0 x16 (from CPU), PCIe 3.0 x1 (from Chipset)
- LAN Speed: 1 Gbps
- Rear USB Ports: 4x USB 2.0 Type-A,2x USB 3.2 Gen 1 5Gbps Type-A
- Colour: Black/Silver
- Product Dimensions: 23.6 x 20 cm
What’s in the Box
- MSI PRO H610M-S DDR4 II LGA1700 M-ATX Motherboard x1
- SATA Cable x1
- I/O Shield x1
- M.2 Screw/Standoff Set x1
- Quick Start Guide x1
